The most common sizing question for concrete sleeper retaining walls is: do I need 75mm or 100mm sleepers? Both are 200mm high and 2000mm long — the difference is the thickness, which directly affects the sleeper's bending strength and load capacity.
This guide gives you a clear framework for choosing the right sleeper thickness for your project.

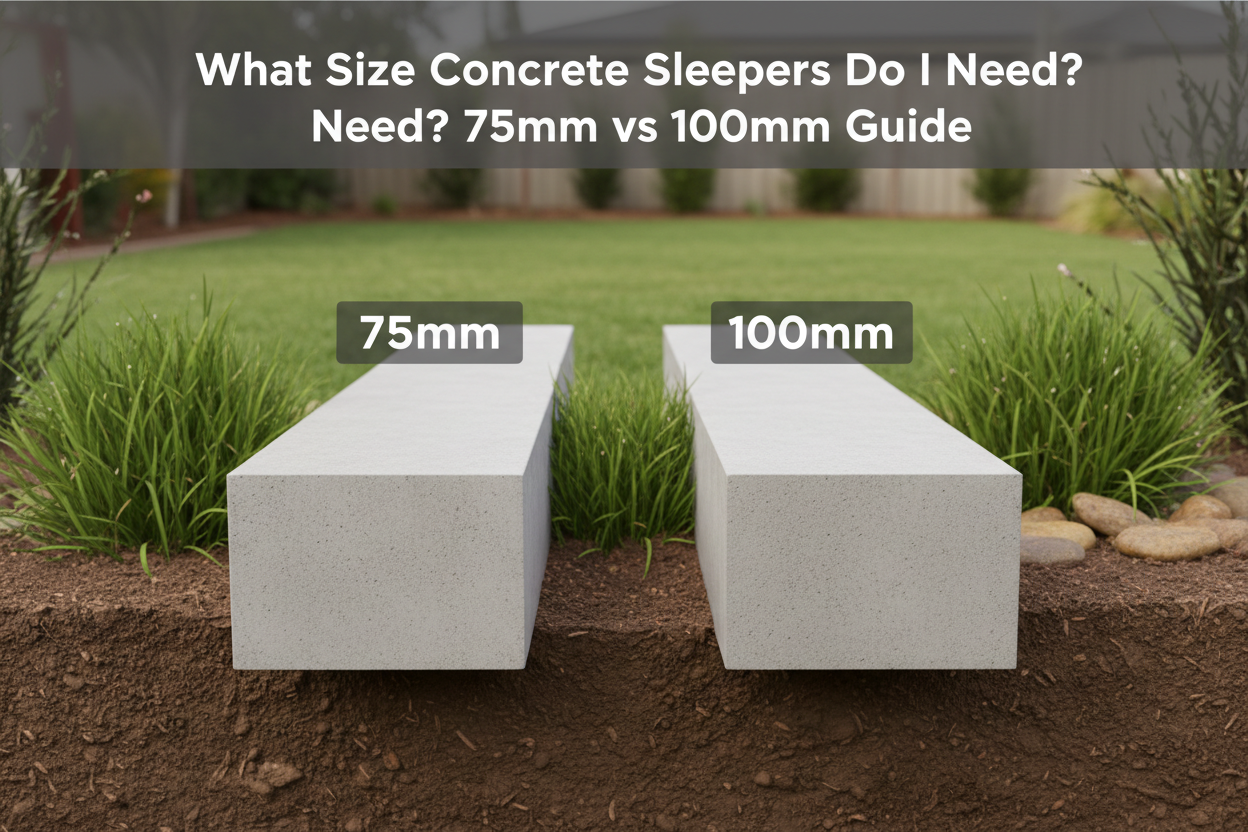

The Two Standard Sizes
200x75mm Concrete Sleepers
The most widely used concrete sleeper size across Australian residential retaining walls. 75mm thick, 200mm high, 2000mm long. Suitable for most residential walls under 1.0–1.2m in standard soil conditions without surcharge loads. Available in charcoal, woodgrain, and smooth finish.
200x100mm Concrete Sleepers
The heavy duty option. 100mm thick, 200mm high, 2000mm long. Significantly greater bending strength than 75mm sleepers. Specified for walls over 1.0m, heavy or reactive clay soils, surcharge loads (driveways, vehicles, structures), or where an engineer has specified 100mm sleepers. Available in all three finishes. See our heavy duty 100mm sleeper range.
Why Thickness Matters
The thickness of a concrete sleeper directly affects its bending strength — its ability to resist the lateral pressure from the retained soil between posts. A 100mm sleeper has significantly greater bending strength than a 75mm sleeper of the same length and height.
In practical terms: if the lateral pressure from the retained soil exceeds the bending capacity of the sleeper, the sleeper will crack or fail between posts. This is more likely with taller walls, heavier soils, closer post spacing, or surcharge loads — all of which increase the bending moment on the sleeper.
When to Use 75mm Sleepers
- Wall height under 1.0–1.2m (finished retained height)
- Standard soil conditions — sandy loam, light clay, well-drained
- No surcharge loads above the wall (no driveway, vehicles, or structures)
- Post spacing of 1.8–2.0m centres
- Standard residential garden wall, level change, or low embankment
When to Use 100mm Sleepers
- Wall height exceeds 1.0m (finished retained height)
- Heavy or reactive clay soils (common in western Sydney, Brisbane's western suburbs, Melbourne's eastern suburbs)
- Surcharge loads present — driveway, vehicle parking, or structure above the wall
- A structural engineer has specified 100mm sleepers
- You want maximum structural confidence regardless of height
- Wall is near a boundary or structure where failure would have serious consequences
The Grey Zone: 1.0–1.2m in Clay Soils
The most common specification uncertainty is walls in the 1.0–1.2m range in clay soils. In sandy or well-drained soils, 75mm sleepers are generally adequate at this height. In heavy clay soils, the lateral pressure is significantly higher, and 100mm sleepers provide a meaningful safety margin even at heights where 75mm might technically be adequate in better soil conditions.
If you're in this grey zone and unsure, the conservative choice is 100mm. The cost difference between 75mm and 100mm sleepers is modest; the consequence of underspecifying is not.
Does Sleeper Thickness Affect Post Selection?
Sleeper thickness and post type are related but separate decisions. Both are driven by the same factors — wall height, soil conditions, and surcharge loads. In general:
- If you're specifying 100mm sleepers (for a taller or more demanding wall), you should also be specifying H-beam posts rather than C-channel posts.
- If you're specifying 75mm sleepers (for a standard residential wall), C-channel posts are generally the appropriate post choice.
The two decisions should be made together, not independently. See our guide on choosing the right retaining wall post.
Does Finish Affect Thickness Options?
No. All three finishes — charcoal, woodgrain, and smooth — are available in both 75mm and 100mm thickness. The finish is a surface treatment only and does not affect the structural properties of the sleeper. Choose your finish based on aesthetics; choose your thickness based on structural requirements.
Frequently Asked Questions
Are 100mm sleepers much stronger than 75mm?
Yes, significantly. The bending strength of a concrete sleeper increases with the cube of its thickness — so a 100mm sleeper is approximately 2.4 times stronger in bending than a 75mm sleeper of the same length and height. This is a substantial difference that matters for taller walls, heavy soils, and surcharge loads.
Can I mix 75mm and 100mm sleepers in the same wall?
Structurally, mixing thicknesses in the same wall is not recommended — the thinner sleepers will be the weak point in the wall. Aesthetically, the different thicknesses will be visible as a step in the wall face. Use a consistent thickness throughout each wall run.
Do I need 100mm sleepers for a 1.0m wall?
In standard soil conditions (sandy loam, light clay) without surcharge loads, 75mm sleepers are generally adequate for a 1.0m wall. In heavy clay soils, or with any surcharge load, 100mm sleepers are the safer specification. If in doubt, confirm with a structural engineer.
Are 100mm sleepers heavier to handle?
Yes. A 200x100mm sleeper weighs approximately 25–30% more than a 200x75mm sleeper of the same length. This affects handling during installation — 100mm sleepers typically require two people to lift and position. Factor this into your installation planning.
Ready to Order?
Browse our charcoal, woodgrain, and smooth finish sleepers in both 75mm and 100mm thickness, or our heavy duty 100mm range. Or contact our team to confirm the right sleeper thickness for your project before you order.
