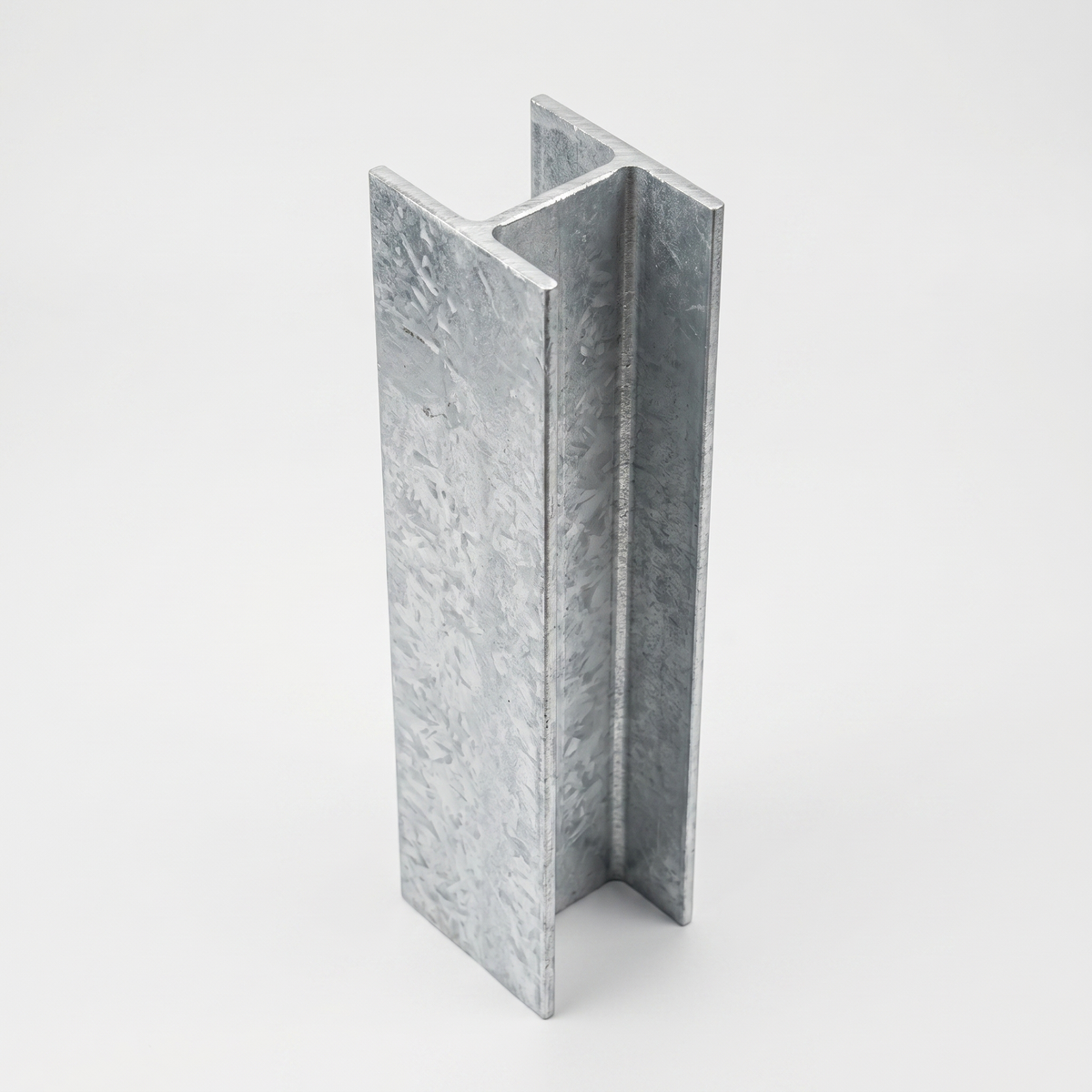

Galvanised Steel H-Beam Middle Post 100UC

Our 100UC galvanised steel H-beam post is the standard middle post for concrete sleeper and timber sleeper retaining walls. The H-shaped cross section provides flanges on both sides to accept sleepers, making it the workhorse post for straight wall runs. Hot-dip galvanised to AS/NZS 4680 for maximum corrosion resistance in Australian conditions.

Specifications

• Section: 100UC (Universal Column)
• Profile: H-beam — double flange, accepts sleepers both sides
• Galvanising: Hot-dip galvanised to AS/NZS 4680
• Fits: 75mm and 80mm concrete and timber sleepers
• Steel thickness: 5mm
• Compliance: AS 4678-2002 Earth Retaining Structures

Features

• Heavy duty hot-dip galvanised steel — no rust, no painting required
• Termite, fire and moisture resistant
• Fence bracket welding available on request
• Base plate welding available on request
• Delivered Australia-wide

For walls over 1.0m, reactive clay soils, or surcharge loads, consult a structural engineer before installation.
