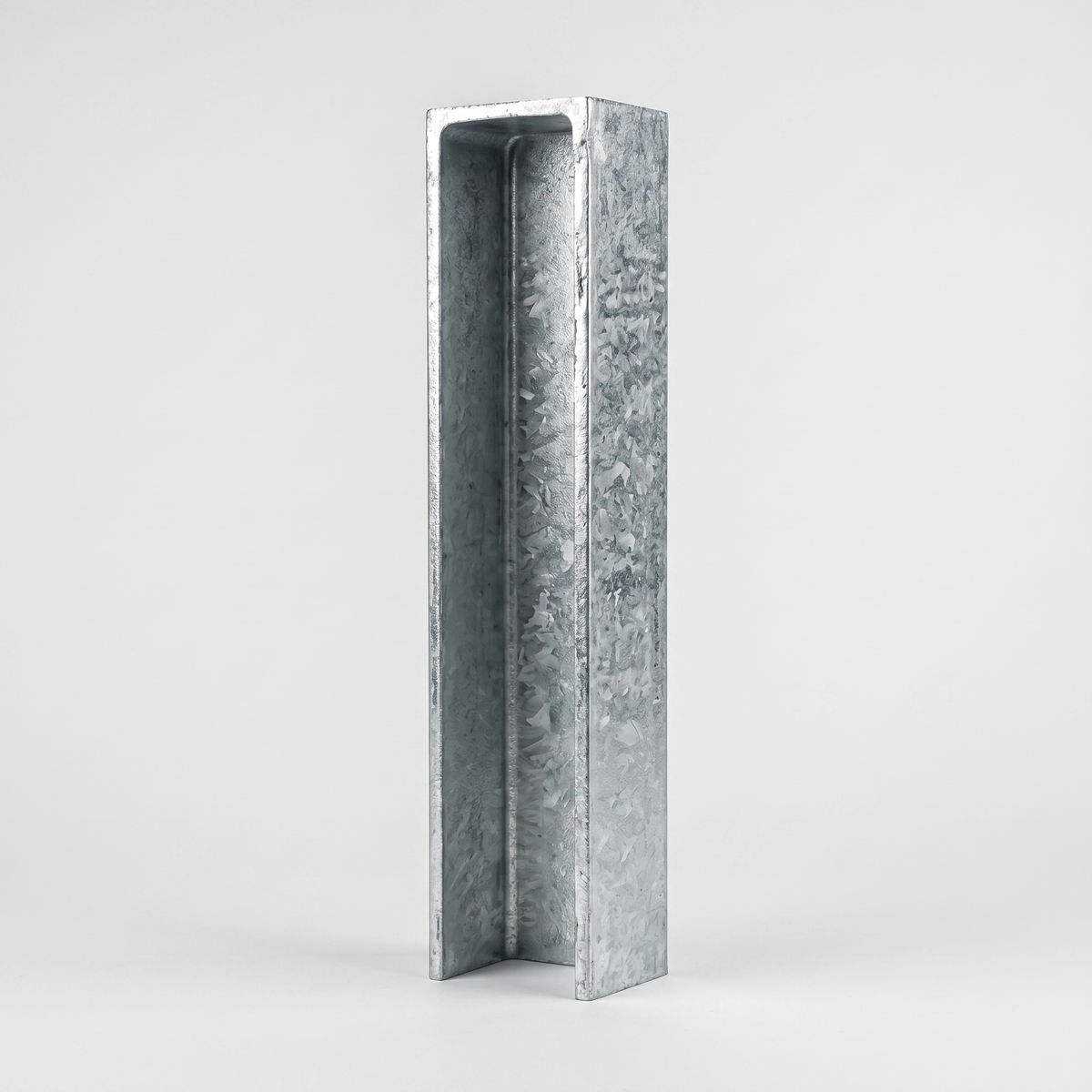

Galvanised Steel C-Channel End Post 100PFC

Our 100PFC galvanised steel C-channel end post is used at the start and end of retaining wall runs, or wherever a wall terminates cleanly. The C-shaped profile accepts sleepers from one side only, providing a neat structural termination. Hot-dip galvanised to AS/NZS 4680 for long-term corrosion resistance.

Specifications

• Section: 100PFC (Parallel Flange Channel)
• Profile: C-channel — single flange, accepts sleepers one side
• Galvanising: Hot-dip galvanised to AS/NZS 4680
• Fits: 75mm and 80mm concrete and timber sleepers
• Steel thickness: 5mm
• Compliance: AS 4678-2002 Earth Retaining Structures

Features

• Clean wall termination — ideal for wall ends and returns
• Heavy duty hot-dip galvanised steel — no rust, no painting required
• Termite, fire and moisture resistant
• Fence bracket welding available on request
• Base plate welding available on request
• Delivered Australia-wide

For walls over 1.0m, reactive clay soils, or surcharge loads, consult a structural engineer before installation.
