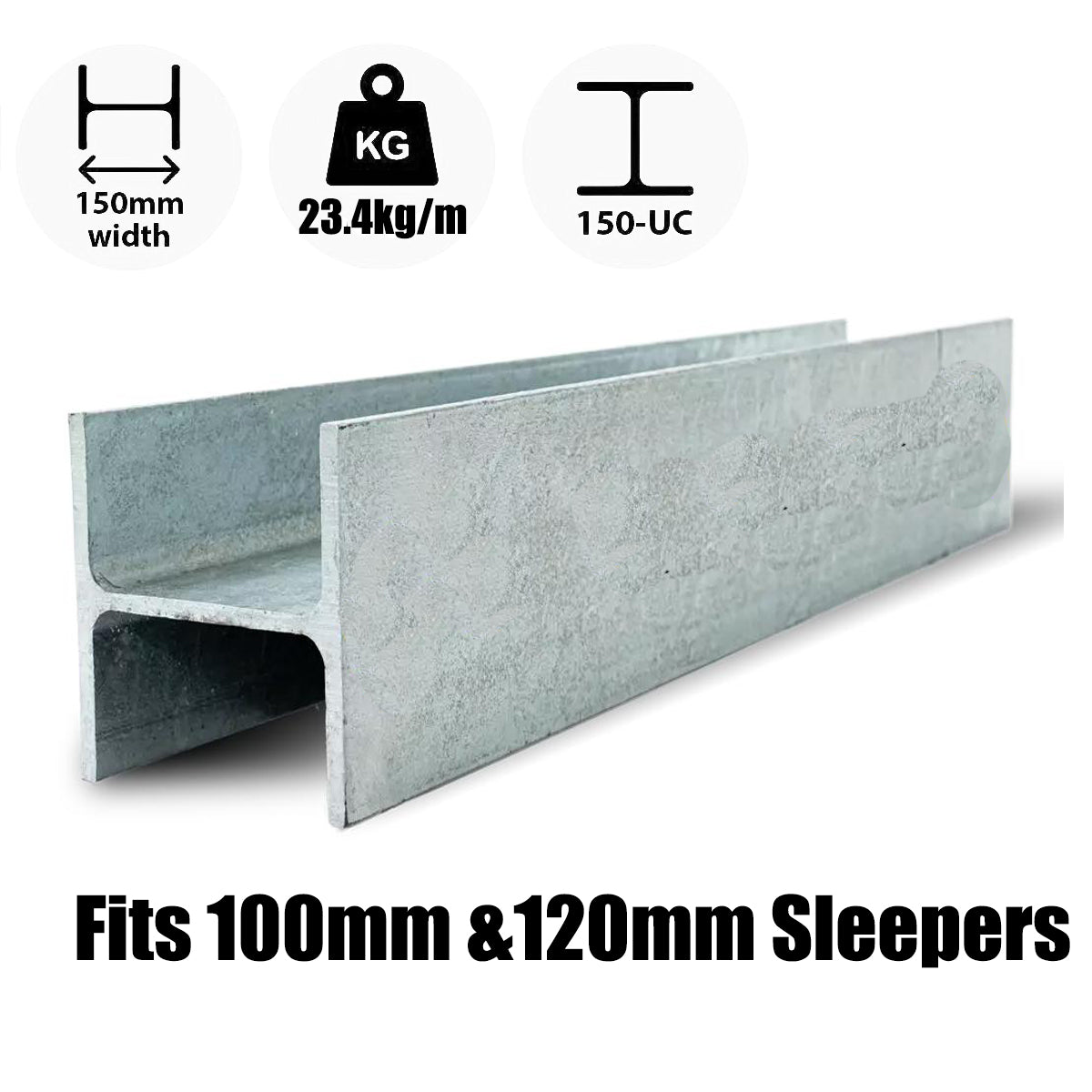

The Galvanised Steel H Post 150mm UC23.4 is a heavy-duty Universal Column post designed for concrete sleeper retaining wall systems where additional strength, stiffness, and embedment depth are required. Also known as a 150UC H-beam post, this steel section is commonly used for taller retaining walls, reactive clay sites, surcharge load applications, and engineer-specified wall designs.
The H-shaped profile allows concrete sleepers to slot into both sides of the post, making it the correct post type for the middle sections of straight retaining wall runs. Compared with lighter post sections, the 150UC profile provides greater resistance to lateral earth pressure, helping support walls where soil load, wall height, driveway proximity, fencing, or sloping ground increases the demand on the structure.
150UC 23.4 galvanised H posts are available in longer structural lengths to suit retaining walls requiring deeper embedment, greater retained height, and stronger lateral support. The correct post length must allow for both the visible wall height above ground and the required in-ground embedment depth below ground.
| Post Length | Typical Use |
|---|---|
| 2400mm | Medium-height retaining walls where a heavier H post is required and adequate footing embedment must be allowed. |
| 2800mm | Residential retaining walls with increased retained height, clay soil, or moderate surcharge conditions. |
| 3200mm | Taller wall sections, stepped sites, and walls requiring deeper footing depth for improved lateral resistance. |
| 3600mm | Heavy-duty residential retaining walls, boundary walls, and sites with more demanding soil pressure. |
| 4000mm | Higher retaining wall designs requiring longer embedment and greater post stiffness. |
| 4400mm | Engineer-specified wall systems where increased retained height or ground conditions require longer steel posts. |
| 4800mm | Demanding retaining wall applications, including reactive clay sites, sloped blocks, and walls near surcharge loads. |
| 5200mm | Long-post applications where deep embedment and stronger structural allowance are required. |
| 5600mm | Maximum listed length for heavy-duty retaining wall systems, deep footings, and engineer-specified installations. |
A 150UC 23.4 H post is a heavier Universal Column section used when a retaining wall requires more stiffness than a lighter 100UC post. The H-shaped profile supports concrete sleepers on both sides of the post, making it suitable for middle posts along continuous straight wall runs. Each sleeper bay transfers lateral soil pressure into the post, and the post transfers that force into the concrete footing.
This makes the 150UC post suitable for more demanding retaining wall layouts, including taller walls, reactive clay sites, driveway-adjacent walls, fence-over-wall applications, and walls where post spacing or retained soil load requires additional strength. Final suitability should always be confirmed against wall height, soil type, surcharge load, post centres, footing size, drainage design, and engineering requirements.
The 100UC post is generally used where an H-beam is required but the wall does not need the added stiffness of a heavier section. The 150UC post is the next step up, offering a stronger and more rigid option for walls with higher retained loads, clay soil, surcharge conditions, or greater wall height.
If the retaining wall is low and conditions are stable, a 100UC post may be sufficient when confirmed by the design. If the wall is taller, near a driveway, supporting a fence, or built in reactive soil, a 150UC post is commonly the more appropriate structural choice.
The 150UC post is a heavy-duty residential retaining wall post suitable for many stronger wall applications. The 200UC post is the premium-strength option generally reserved for the most demanding retaining wall designs, including very tall walls, high surcharge loads, heavy vehicle areas, structures above the wall, and engineer-specified projects requiring maximum section capacity.
For most heavy residential wall applications, 150UC may be the correct balance of strength, cost, and practicality. For high-load or high-risk conditions, engineering may require a 200UC post instead.
H posts and C-channel posts are used in different parts of a concrete sleeper retaining wall system. A C-channel post holds sleepers on one side only and is often used at wall ends or for lower retaining walls. An H post holds sleepers on both sides, making it the correct section for middle posts in a straight run.
The H-shaped profile also provides greater stiffness than a C-channel post, which is why H posts are commonly used for taller walls, clay soils, surcharge loads, and engineer-specified wall systems.
Correct installation is critical for retaining wall performance. 150UC H posts should be set plumb, aligned accurately, spaced to suit the selected concrete sleeper length, and embedded into concrete footings designed for the retained height and ground conditions.
The footing must be sized to resist overturning and lateral pressure from retained soil. As wall height increases, the required post length, footing depth, footing diameter, and concrete volume also increase. Where engineering drawings are supplied, always follow the specified post spacing, post size, footing depth, and concrete strength.
Drainage should always be installed behind the wall. A suitable retaining wall drainage system usually includes free-draining aggregate, geotextile fabric, and slotted agricultural pipe at the base of the wall discharging to a legal outlet. Poor drainage can increase hydrostatic pressure behind the wall and may lead to movement, leaning, cracking, or structural failure.
Galvanised Steel H Posts 150mm UC23.4 are available in 2400mm, 2800mm, 3200mm, 3600mm, 4000mm, 4400mm, 4800mm, 5200mm, and 5600mm lengths. Delivery is available across Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Gold Coast, and regional Australia. Get a free quote for your retaining wall project.
