Freight is calculated based on your location and order size.We'll contact you with a freight cost within 1 business day before processing payment.

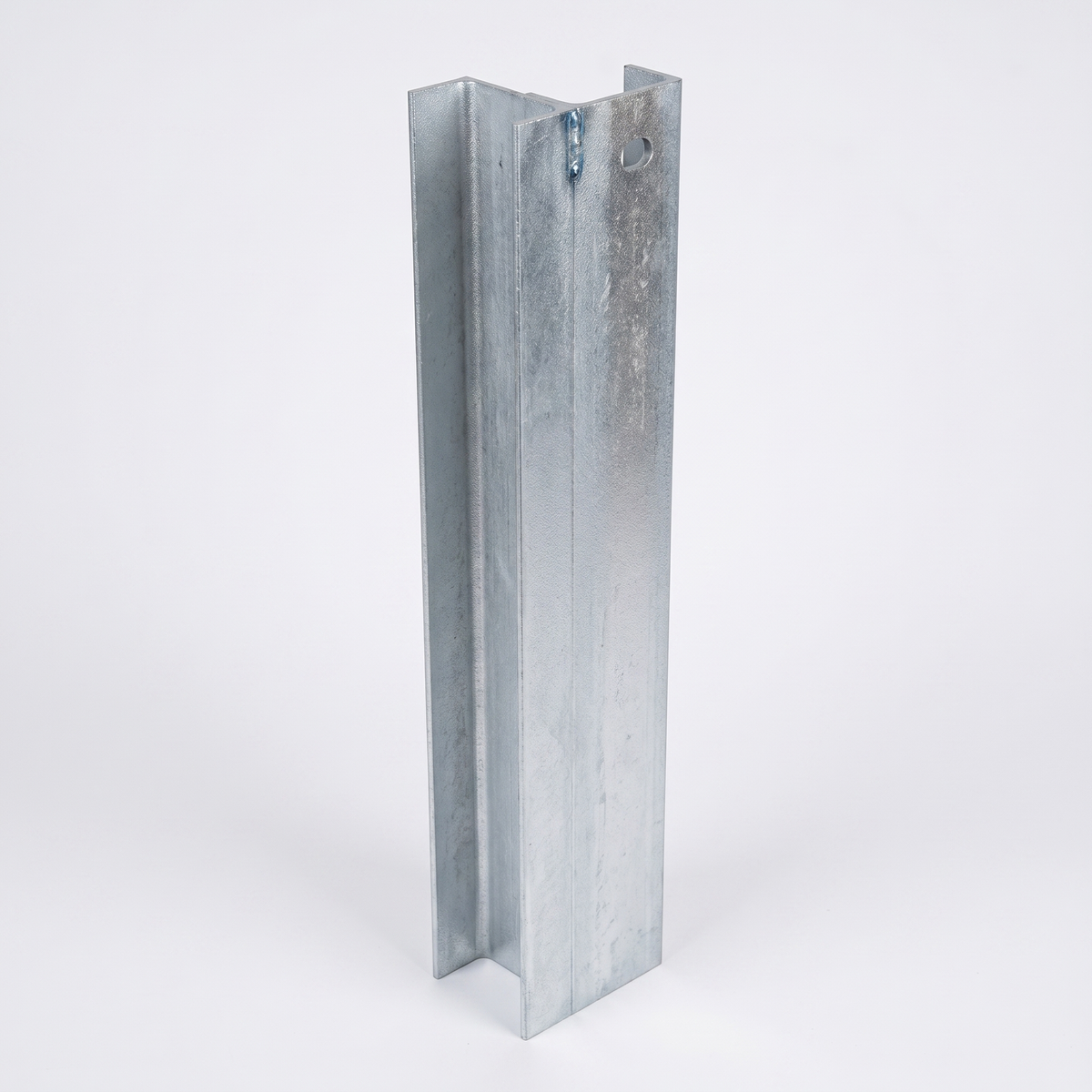

The galvanised steel 90° corner post is fabricated from two 100PFC C-channels factory-welded at a right angle — for wherever a retaining wall turns 90 degrees. Ideal for boundary corners, L-shaped and U-shaped walls. Hot-dip galvanised to AS/NZS 4680, in 800–2400mm. Australian-made, delivered Australia-wide by Retaining Walls Direct.
Written and product-checked by the Retaining Walls Direct team — supplying steel-post retaining wall systems across Australia. Last updated: June 2026.
The corner post accepts concrete sleepers from both perpendicular directions, giving a clean right-angle return with no visible site-welded joins. Use with H-beam middle posts and C-channel end posts to complete the wall.
Post length = retained height above ground plus embedment (roughly double the wall height as a starting guide; confirm by engineering). See the steel post sizing guide.
| Section | 2 × 100PFC welded at 90° |
|---|---|
| Role | Corner post — accepts sleepers both perpendicular directions |
| Lengths | 800 – 2400mm |
| Fits | 75mm & 80mm concrete and timber sleepers |
| Galvanising | Hot-dip galvanised to AS/NZS 4680 |
| Compliance | AS 4678-2002 · factory welded (not site-welded) |
| Brand | Retaining Walls Direct (Australian-made) |
Add caps, brackets & hardware and drainage — a drainage kit, ag pipe and geo matting. See how to build a concrete sleeper retaining wall.
For walls over 1.0m, reactive clay or surcharge loads, consult a structural engineer (engineered walls over 1 metre) and plan drainage.
Send your postcode and quantities for a freight quote, or contact the team.
When do I need a corner post?
Wherever the wall turns 90° — boundary corners, L-shaped and U-shaped walls.
Is it welded on site?
No — it's factory-welded for structural integrity, then hot-dip galvanised.
What sleepers does it fit?
75mm and 80mm concrete and timber sleepers.
Can you deliver to me?
We deliver across most of Australia. Send your postcode and quantities for a freight estimate.
