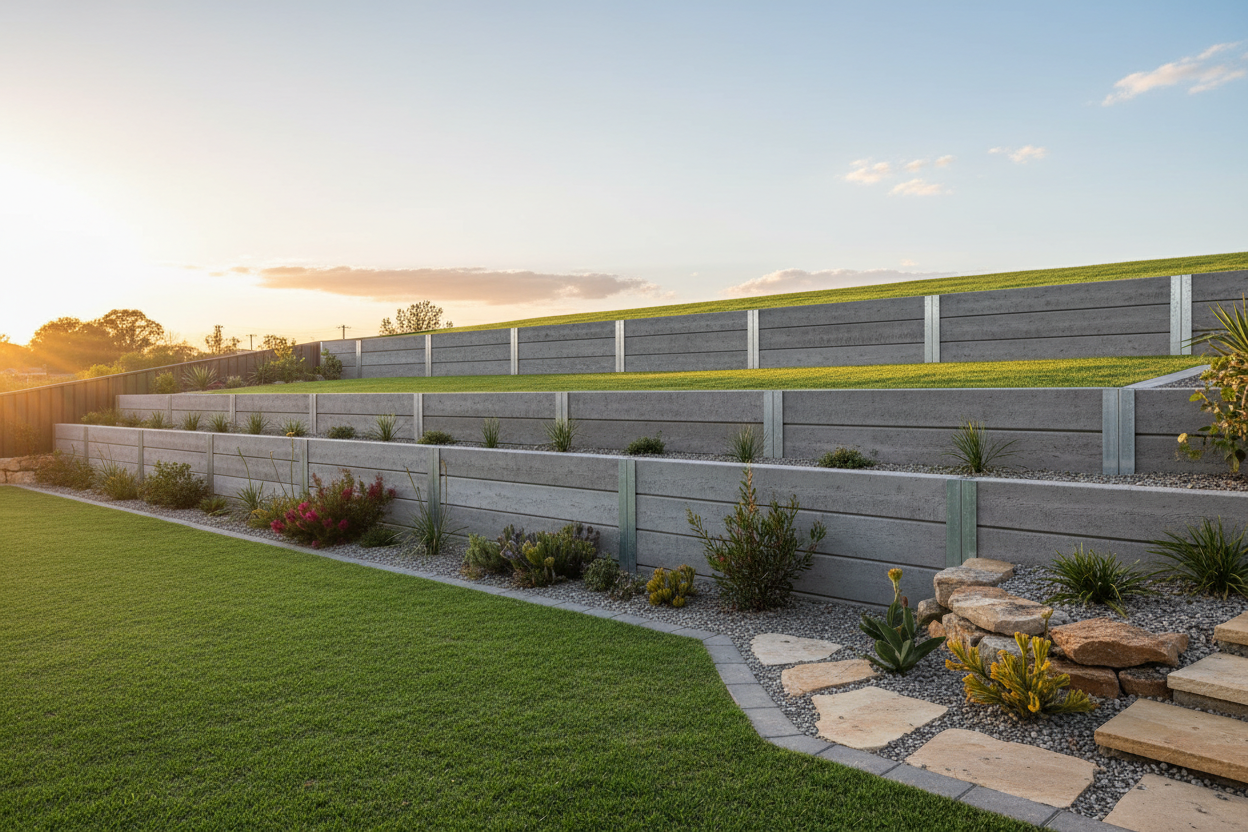

Concrete sleeper retaining walls are the most durable, low-maintenance, and cost-effective retaining solution available to Australian homeowners, builders, and landscapers. Whether you're managing a sloping block, protecting a driveway, or creating usable garden terraces, this guide covers everything you need to know — from choosing the right sleeper size and finish, to installation, drainage, and long-term care.
Last updated: May 2026 | Written by the team at Retaining Walls Direct — with 40 years of trade experience supplying retaining wall materials across Australia.
Table of Contents
- What Is a Concrete Sleeper Retaining Wall?
- Concrete Sleepers vs Timber Sleepers — Which Is Better?
- Choosing the Right Concrete Sleeper Size (75mm vs 100mm)
- Concrete Sleeper Finishes — Smooth, Woodgrain & Charcoal
- How to Build a Concrete Sleeper Retaining Wall (Step-by-Step)
- Drainage — The Most Critical Part of Any Retaining Wall
- How Much Does a Concrete Sleeper Retaining Wall Cost?
- Maintenance & Longevity
- Boundary Walls — Special Considerations
- Frequently Asked Questions
1. What Is a Concrete Sleeper Retaining Wall?
A concrete sleeper retaining wall uses precast reinforced concrete panels (sleepers) slotted horizontally between vertical steel posts to hold back soil, create level terraces, or define boundaries. Unlike timber, concrete sleepers won't rot, warp, or be attacked by termites — making them the preferred choice for permanent residential and commercial applications across Australia.
They're engineered to comply with AS 4678 (Earth-Retaining Structures) and, when installed correctly, can last 50+ years with minimal maintenance.
2. Concrete Sleepers vs Timber Sleepers — Which Is Better?
| Concrete Sleepers | Timber Sleepers | |
|---|---|---|
| Lifespan | 50+ years | 10–20 years |
| Maintenance | Very low | Moderate–high |
| Termite resistance | Yes | No |
| Rot resistance | Yes | No |
| Upfront cost | Moderate–high | Lower |
Full comparison: Concrete Sleepers vs Timber Sleepers — Which Is Better?
3. Choosing the Right Concrete Sleeper Size (75mm vs 100mm)
75mm sleepers suit walls up to 1.0–1.2m in light residential applications. 100mm sleepers are required for walls over 1.0m, driveways, clay soils, or any wall with heavy surcharge loads.
Rule of thumb: If in doubt, go 100mm. The cost difference is modest; the structural margin is significant.
Detailed guide: 75mm vs 100mm Concrete Sleepers — Which Should You Choose?
4. Concrete Sleeper Finishes — Smooth, Woodgrain & Charcoal
Smooth finish — clean, contemporary, easy to paint or render. Woodgrain finish — replicates timber without the maintenance. Charcoal finish — premium dark look for modern landscaping.
Render and paint guide: How to Render or Paint a Concrete Sleeper Retaining Wall
Full finish comparison: Charcoal vs Woodgrain vs Smooth Finish Concrete Sleepers
5. How to Build a Concrete Sleeper Retaining Wall (Step-by-Step)
- Step 1 — Plan and mark out: Determine wall line, post spacing (1.8m–2.4m centres), check for underground services.
- Step 2 — Dig post holes: Embed posts to minimum one-third of total post length. See: Post Embedment Guide
- Step 3 — Set posts in concrete: Allow 24–48 hours to cure before loading.
- Step 4 — Slot in sleepers: Start from the bottom, slide sleepers into post channels.
- Step 5 — Install drainage: Geotextile fabric, ag pipe, 20mm drainage aggregate. See: Retaining Wall Drainage Guide
- Step 6 — Backfill and compact: 200mm lifts, avoid heavy compaction within 1m of wall face.
- Step 7 — Cap: See: Retaining Wall Caps — Do You Need Them?
Full step-by-step build guide: How to Build a Concrete Sleeper Retaining Wall
6. Drainage — The Most Critical Part of Any Retaining Wall
Poor drainage is the number one cause of retaining wall failure in Australia. Every wall must have drainage aggregate, ag pipe, geotextile fabric, and weep holes.
Complete drainage guide: Retaining Wall Drainage — Why It Matters and How to Do It Right
7. How Much Does a Concrete Sleeper Retaining Wall Cost?
| Wall Type | DIY Supply Cost | Installed (Contractor) |
|---|---|---|
| Simple garden wall (under 1m) | $150–$250/lm | $350–$600/lm |
| Standard wall (1.0–1.5m) | $250–$400/lm | $600–$1,000/lm |
| Engineered wall (1.5m+) | $400–$600/lm | $1,000–$1,800/lm |
Full cost breakdown: How Much Does a Retaining Wall Cost in Australia? (2026 Guide)
8. Maintenance & Longevity
With proper installation and drainage, a concrete sleeper retaining wall lasts 50+ years with minimal intervention. Inspect weep holes annually, check for bowing or cracking, and clear drainage outlets after heavy rain.
Full maintenance guide: Retaining Wall Maintenance Guide
9. Boundary Walls — Special Considerations
Building on or near a property boundary introduces setback rules, neighbour notification requirements, and additional council approval triggers. Concrete sleepers with galvanised steel posts are the only recommended material for boundary walls.
Full boundary wall guide: How to Build a Retaining Wall on a Boundary — Rules, Setbacks & Best Practice
10. Frequently Asked Questions
Do I need council approval?
Walls under 600mm–1,000mm are typically exempt. Above that, a building permit and engineering certification are usually required. See: Retaining Wall Height Limits & Council Approval in Australia
Can I DIY?
Yes, for walls under 1m. See our DIY vs Professional guide.
What steel posts do I use?
H-beam or C-channel galvanised steel posts. See: How to Choose the Right Retaining Wall Post
Can I build on a boundary?
Yes, with the right approvals. See: How to Build a Retaining Wall on a Boundary
How do I fix a leaning wall?
Almost always a drainage issue. See: How to Fix a Leaning or Bowing Retaining Wall
