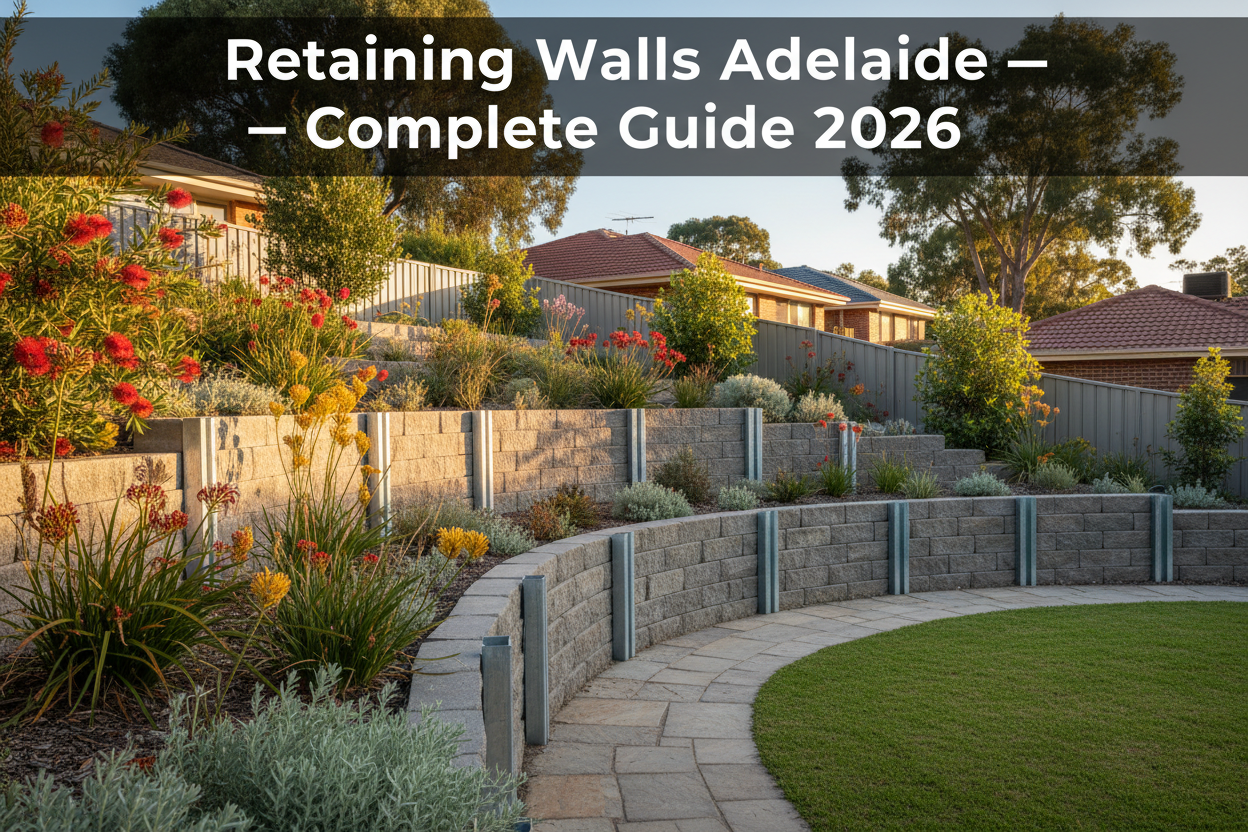

Retaining Walls Adelaide — What You Need to Know in 2026
Adelaide's diverse geology — from the reactive clay plains of the northern and southern suburbs to the rocky terrain of the Adelaide Hills and the sandy coastal strip — means that retaining wall specification varies significantly across the city. Add in South Australia's development approval framework and the unique challenges of building on the Adelaide Plains, and getting your retaining wall right requires local knowledge. This guide covers everything Adelaide homeowners, landscapers, and builders need to know.
Written by Lee Bradley, with 40+ years of hands-on experience building retaining walls across South Australia and Australia.
Adelaide Soil Types — What's Under Your Block?
Adelaide Plains — Reactive Clay (Northern & Southern Suburbs)
The majority of Adelaide's residential suburbs on the plains — from Elizabeth and Salisbury in the north to Morphett Vale and Noarlunga in the south — sit on reactive Keswick Clay and associated clay soils. These soils expand significantly during Adelaide's wet winters and contract in the long dry summers, placing cyclic lateral loads on retaining wall structures. For reactive clay sites across the Adelaide Plains:
- Specify 50MPa concrete sleepers for all walls
- Specify H-Beam (UC) steel posts for all walls over 800mm
- Install drainage behind the wall to manage winter water pressure
Adelaide Hills — Rocky Terrain & Clay (Stirling, Aldgate, Hahndorf)
The Adelaide Hills present challenging retaining wall conditions with steep terrain, high winter rainfall, and a mix of rock and clay soils. Post holes in the Hills typically require rock-breaking equipment. All Hills retaining walls over 1.0m should be engineer-specified. The Hills' high rainfall makes drainage behind the wall critical — more so than on the plains.
Coastal Strip — Sandy Soils (Glenelg, Brighton, Henley Beach)
Adelaide's coastal strip sits on sandy soils with good drainage and low lateral pressure. Standard 40MPa concrete sleepers and C-Channel steel posts are appropriate for walls under 1.0m in these conditions.
Inner Suburbs — Mixed Fill & Clay (Unley, Norwood, Prospect)
Adelaide's inner suburbs often contain made ground and mixed fill from historical development, which can be unpredictable for retaining wall construction. Always investigate soil conditions before specifying materials in inner Adelaide suburbs. H-Beam posts are recommended for any wall over 800mm in mixed fill conditions.
Choosing the Right Concrete Sleepers for Adelaide
40MPa Concrete Sleepers
40MPa concrete sleepers are the standard residential specification for Adelaide retaining walls in stable, well-drained sandy soils. Suitable for the coastal strip for walls under 1.0m with no surcharge load. Available in charcoal, woodgrain, and smooth finish.
50MPa Concrete Sleepers
50MPa concrete sleepers are the recommended specification for all Adelaide Plains retaining walls on reactive clay soils, walls over 1.0m, and all engineer-specified designs. The preferred specification for Elizabeth, Salisbury, Morphett Vale, Noarlunga, and all Adelaide Hills projects.
Choosing the Right Steel Posts for Adelaide
C-Channel (PFC) Posts
C-Channel steel posts are suitable for Adelaide retaining walls under 1.0m in stable, well-drained sandy soils on the coastal strip. For most Adelaide Plains sites, H-Beam is the preferred specification due to reactive clay conditions.
H-Beam (UC) Posts
H-Beam steel posts are the recommended specification for all Adelaide Plains retaining walls on reactive clay, walls over 1.0m, and all engineer-specified designs. If you're building in Elizabeth, Salisbury, Morphett Vale, Noarlunga, or the Hills — specify H-Beam regardless of wall height.
Adelaide Council & SA Development Approval Requirements
In South Australia, retaining walls are regulated under the Planning, Development and Infrastructure Act 2016. Key requirements for Adelaide retaining walls:
- Retaining walls over 1.0m in height generally require development approval from your local council or the SA Planning Portal
- Walls near boundaries may require neighbour notification and approval regardless of height
- All walls requiring development approval must be designed by a Registered Engineer
- All retaining walls must comply with AS 4678-2002 Earth Retaining Structures
Always check with your local council before commencing work. See our full Retaining Wall Regulations — State-by-State Guide.
How Much Does a Retaining Wall Cost in Adelaide?
- DIY supply-only (materials): $180–$340 per lineal metre for a standard 1.0m wall with concrete sleepers and steel posts
- Installed by a landscaper (no engineer): $450–$800 per lineal metre for a standard 1.0m wall
- Engineer-specified wall over 1.0m: $900–$1,600+ per lineal metre including engineering, approval, and installation
For a detailed cost breakdown, see our Retaining Wall Cost Guide Australia 2026.
Drainage — Critical for Adelaide Retaining Walls
Adelaide's wet winters and the reactive clay soils of the plains create significant water pressure behind retaining walls. Every Adelaide retaining wall must include:
- Coarse gravel or crushed rock backfill directly behind the wall (minimum 300mm wide)
- Slotted agricultural drain pipe at the base of the wall, discharging to a legal point of discharge
- Geotextile fabric between the gravel backfill and native soil to prevent fines migration
- Weep holes through the wall face at regular intervals as a secondary drainage measure
See our full guide: How to Install Drainage Behind a Retaining Wall.
