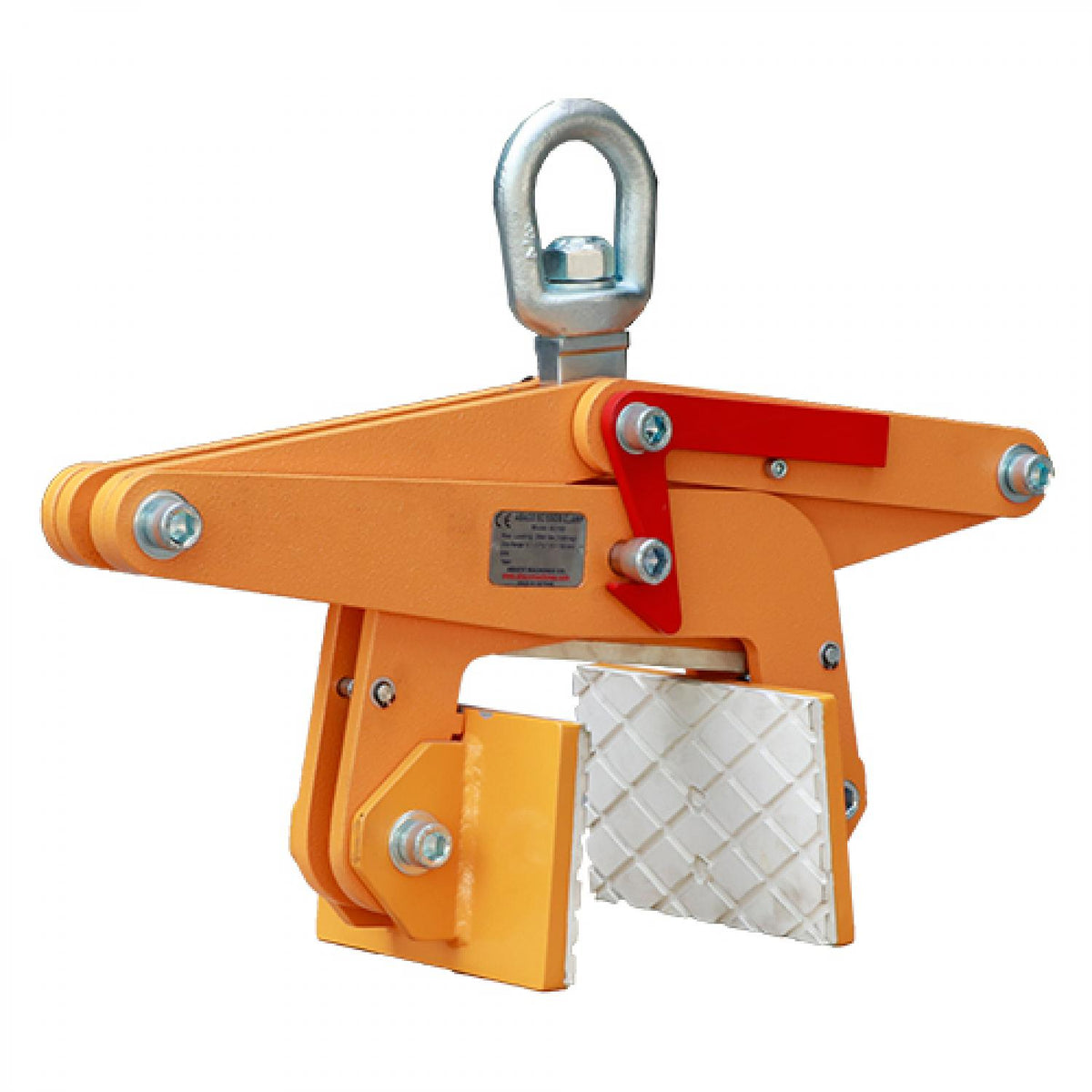

Abaco Scissor Clamp SC100
The Abaco Scissor Clamp SC100 is designed for lifting and handling stone slabs, concrete panels, tiles, and similar flat materials safely and efficiently. Built for workshop, construction, landscaping, and stone-handling applications, this clamp helps reduce manual strain while providing a secure grip during lifting and positioning.
The SC100 features an auto-lock mechanism for easier release, long-lasting fully vulcanised rubber pads, and protective rubber across the jaws to help reduce the risk of chipping during handling. It is designed to lift one slab at a time and includes a swivel eye and bow shackle for practical lifting setup.
Specifications
-
Product type: Scissor lifting clamp
-
Model: Abaco Scissor Clamp SC100
-
Application: Lifting and handling slabs, panels, stone, tile, and similar flat materials
-
Grip system: Fully vulcanised rubber pads for improved hold
-
Jaw protection: Protective rubber across the jaws to help prevent chipping
-
Release system: Auto-lock mechanism for easy release
-
Included hardware: Swivel eye and bow shackle included
-
Replacement parts: Replacement rubber pads available
-
Handling note: Designed to lift one slab at a time
Key Features
-
Auto-lock release: Helps make clamping and releasing easier during repetitive handling tasks.
-
Strong slab grip: Fully vulcanised rubber pads provide a secure hold while helping protect the material surface.
-
Chip protection: Rubber protection across the jaws helps reduce edge damage during lifting.
-
Swivel eye included: Allows practical connection to suitable lifting equipment.
-
Bow shackle included: Supplied ready for compatible lifting setups.
-
Replaceable pads: Replacement pads are available, helping extend the usable life of the clamp.
-
Single slab handling: Designed to lift one slab at a time for safer and more controlled operation.
Technical Overview
The Abaco SC100 uses a scissor-style clamping action to grip the material as lifting force is applied. As the clamp is raised, the jaws close onto the slab or panel, with the rubber pads helping provide friction and surface protection. This makes the clamp useful for controlled vertical lifting, moving, and positioning of compatible materials.
The fully vulcanised rubber pads are designed for durability and grip. The protective rubber across the jaw area is especially useful when handling finished stone, concrete, or tile products where edge chipping is a concern. The auto-lock feature helps with easier release once the slab has been positioned and the lifting load is removed.
Common Applications
- Stone slab handling
- Concrete panel handling
- Tile and paver handling
- Benchtop and stone workshop use
- Landscape supply handling
- Construction material lifting
- Warehouse and yard slab movement
Safe Use Notes
- Always lift only one slab at a time.
- Check that the material thickness and surface are suitable for the clamp before lifting.
- Inspect rubber pads before use and replace worn pads when required.
- Ensure the swivel eye, bow shackle, and lifting equipment are correctly rated for the load.
- Do not stand under suspended loads.
- Always follow site lifting procedures and relevant safety requirements.
Compatible Products
Delivery
The Abaco Scissor Clamp SC100 is available for delivery across Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Gold Coast, and regional Australia. Get a free quote for your lifting and handling equipment order.
