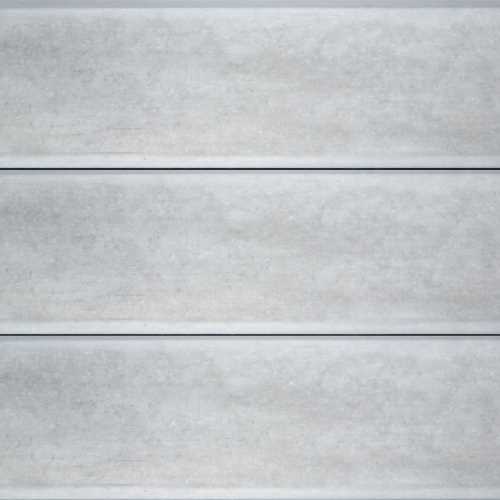

Smooth Bevel concrete sleepers are designed for retaining wall projects where a clean, modern, and architectural finish is preferred over a heavily textured face. The smooth front profile and bevelled edge detail create a neat shadow line between sleepers, giving the finished wall a refined, contemporary appearance that suits residential landscaping, boundary walls, driveway retaining walls, garden terraces, and commercial outdoor spaces.
Manufactured from steel reinforced concrete, Smooth Bevel sleepers provide a stronger and longer lasting alternative to timber sleepers. They are engineered for retaining wall use, simple to install with compatible steel posts, resistant to termites and insects, and built to withstand long term exposure to Australian outdoor conditions. Unlike timber, concrete will not rot, warp, split, splinter, or deteriorate from ground contact.
Smooth Bevel concrete sleepers are available in multiple lengths to suit different retaining wall designs, soil conditions, post spacing requirements, and site access needs. Shorter sleepers are often used where higher wall capacity is required, while longer sleepers can be useful for lower walls, faster installation, and layouts where wider post spacing is preferred.
| Sleeper Length | Typical Use | Wall Height Suitability in Clay Soils |
|---|---|---|
| 1200mm | Higher retaining wall applications where closer post spacing provides additional structural support. | Suitable for retaining walls up to 2.6m high in clay soils. |
| 1500mm | Medium to high retaining walls requiring a balance between wall capacity and efficient installation. | Suitable for retaining walls up to 2.0m high in clay soils. |
| 1800mm | General retaining wall projects where a strong, practical sleeper length is required. | Suitable for retaining walls up to 1.8m high in clay soils. |
| 2000mm | Common residential retaining walls, garden walls, boundary walls, and landscaping projects. | Suitable for retaining walls up to 1.6m high in clay soils. |
| 2350mm | Lower retaining walls and projects designed to suit Colorbond fence panel sizing. | Suitable for retaining walls up to 1.2m high in clay soils. |
Custom colours, concrete sealing, and stronger N16 steel reinforcement are available by request. Custom sleepers may be suitable for projects requiring a specific finish, added reinforcement, or a sealed surface for improved appearance and easier cleaning.
Please note that custom orders are subject to a minimum order quantity of 24 sleepers and an estimated 4 week production timeframe.
Smooth Bevel sleepers are designed to be installed with suitable retaining wall steel posts. Correct post selection, footing depth, drainage, backfill, soil type, and wall height all affect the final retaining wall design. For low walls in stable ground, C-Channel posts may be suitable. For taller walls, corners, surcharge loads, driveways, fences above the wall, or reactive clay sites, H-Beam posts are generally preferred for stronger support.
Drainage should always be considered behind the wall. A suitable drainage system normally includes free-draining aggregate, geotextile fabric, and slotted ag pipe to help reduce hydrostatic pressure behind the sleepers. Poor drainage can increase wall loading and shorten the service life of any retaining wall system.
Smooth Bevel concrete sleepers are available in 1200mm, 1500mm, 1800mm, 2000mm, and 2350mm lengths, with delivery available across Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Gold Coast, and regional Australia. Get a free quote for your retaining wall project.
