Fence Brackets are used to attach fencing components to compatible galvanised steel retaining wall posts. Designed for concrete sleeper retaining wall systems, these bracket kits provide a practical fixing point where a fence is installed above or beside a retaining wall, helping create a cleaner and more secure fence-over-wall installation.

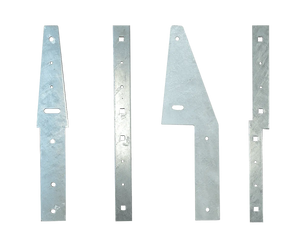

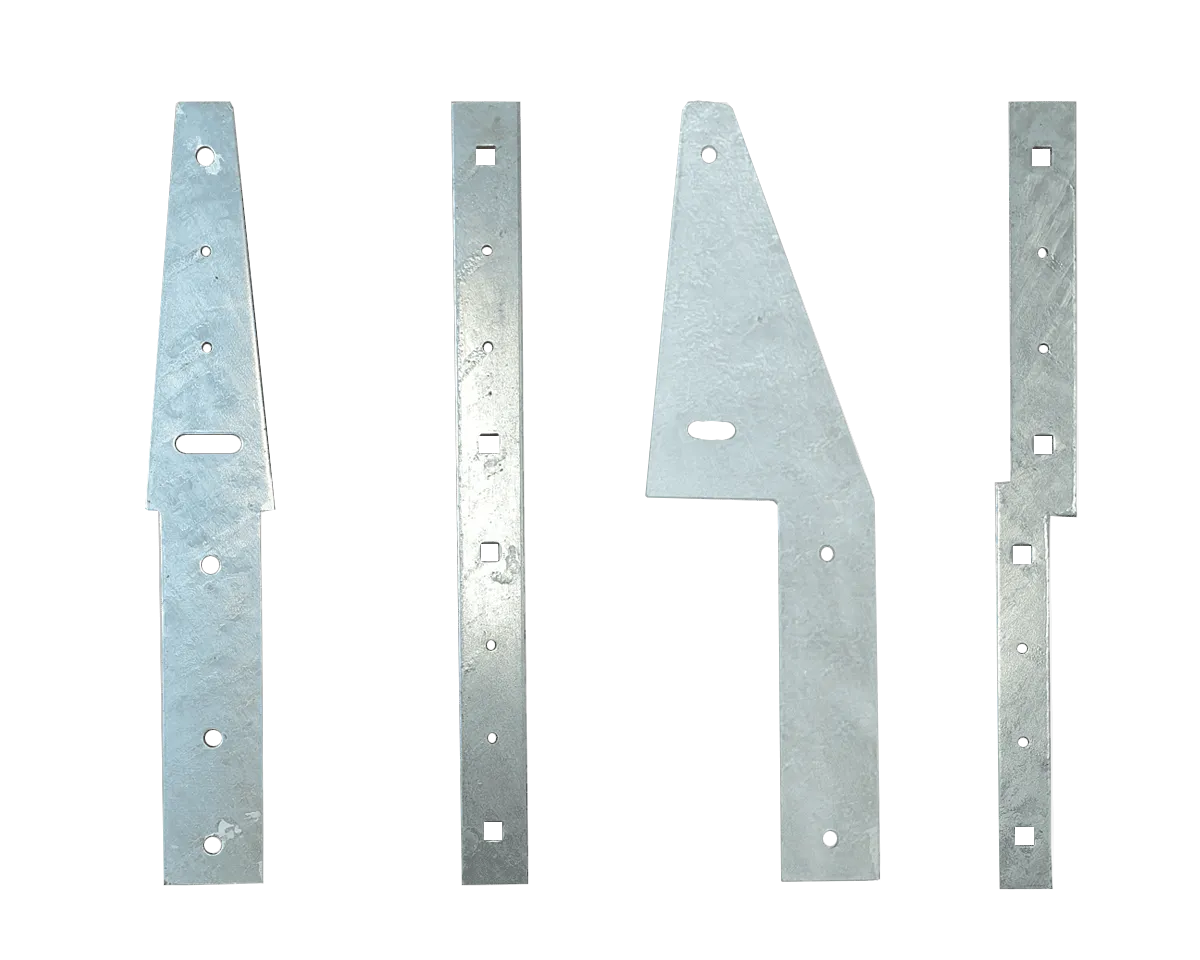

Each kit includes one galvanised fence bracket plus two nuts and bolts, making it easier to connect compatible fencing hardware to pre-drilled retaining wall posts. Available in 3mm, 6mm, and 6mm offset options, these brackets suit a range of installation requirements depending on the post layout, fence position, and alignment needed on site.
| Bracket Kit | Included Components | Typical Use |
|---|---|---|
| 3mm Fence Bracket Kit | 1 bracket, 2 nuts, and 2 bolts | Standard fence fixing applications where a lighter bracket is suitable and the fence alignment is straightforward. |
| 6mm Fence Bracket Kit | 1 bracket, 2 nuts, and 2 bolts | Heavier-duty fence fixing applications where a stronger bracket section is preferred. |
| 6mm Offset Fence Bracket Kit | 1 bracket, 2 nuts, and 2 bolts | Fence installations where the fence rail, post, or fixing point needs to be offset from the retaining wall post face. |
Fence brackets are a small but important part of a fence-over-retaining-wall system. When a fence is installed above a concrete sleeper retaining wall, the connection between the fence and the steel retaining wall post needs to be planned carefully. The bracket provides a controlled fixing point, helping the installer connect fence components to the post without relying on improvised fixings.
The correct bracket choice depends on the fence type, post alignment, required offset, wind exposure, wall height, and whether the retaining wall post has been supplied with suitable pre-drilled holes. The 3mm bracket kit is generally suited to standard fixing requirements, while the 6mm kit offers a heavier bracket section. The 6mm offset kit is useful where the fence line needs to sit forward or back from the retaining wall post face.
The 3mm fence bracket kit is a practical option for standard fence fixing where the fence alignment is simple and a lighter bracket is suitable.

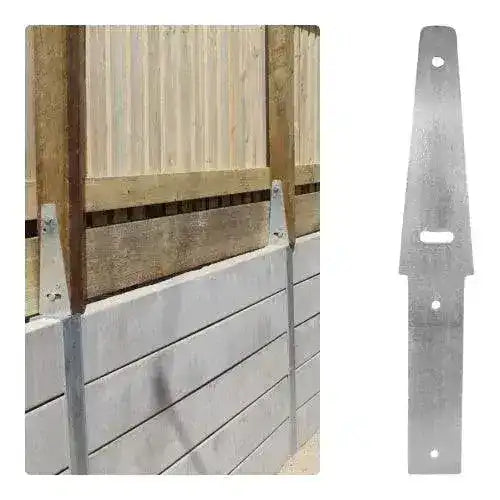

The 6mm fence bracket kit provides a stronger bracket section and is better suited to applications where a heavier fixing point is preferred.

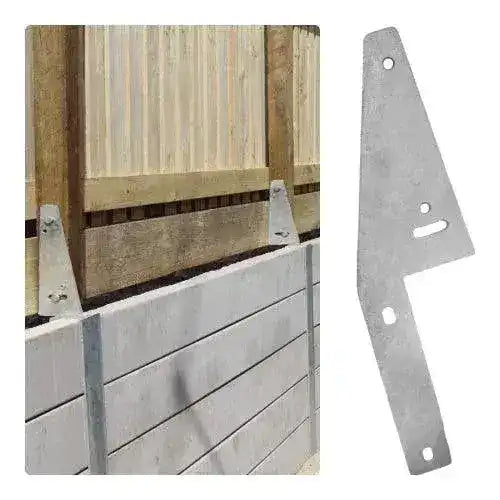

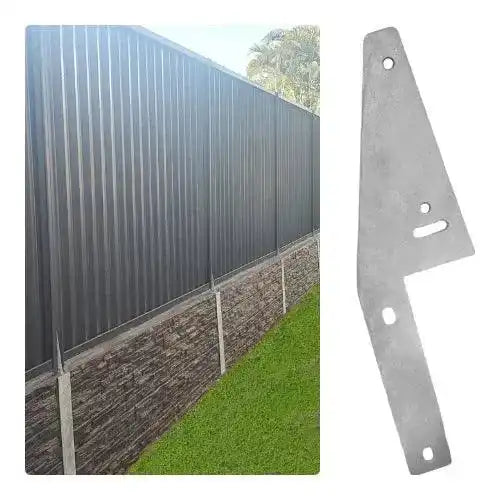

The 6mm offset fence bracket kit is used where the fence rail or post needs to sit offset from the retaining wall post face. This can be useful where fence alignment, wall position, or site layout requires adjustment.
Fence brackets should be installed only with compatible retaining wall posts and suitable fixing points. Before installation, confirm that the retaining wall post has the correct pre-drilled holes, the bracket aligns with the fence system, and the wall design allows for fence loads above the retaining wall.
Fence loads can add surcharge and wind loading to a retaining wall system. If the wall is tall, located in reactive clay, exposed to high wind, or supporting a heavy fence, the retaining wall design should be checked before installing fence brackets. For engineered walls, always follow the engineer's requirements for post size, footing depth, bracket fixing, and fence attachment.
Drainage behind the retaining wall should also be completed correctly. Poor drainage can increase load on the wall, and any fence fixed above the wall may increase the importance of correct post selection, footing depth, and wall stability.
Fence Bracket Kits are available in 3mm, 6mm, and 6mm offset options. Delivery is available across Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Gold Coast, and regional Australia. Get a free quote for your retaining wall project.
